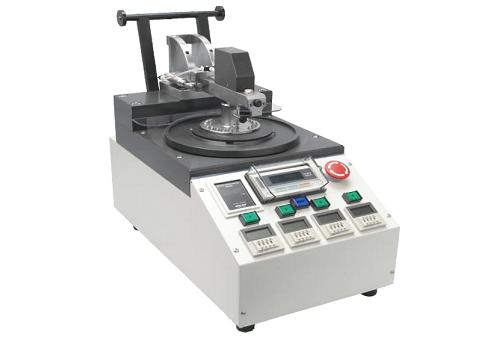

Polishing machine HDC-4000
HDC-4000
Product Description£º

Our high-end APM-4000 features gauges that display force, speed and time settings. It allows the operator to adjust platen pressure to optimize the polishing process, as well as easily polish partially loaded jigs. After the setup is complete, minimum operator knowledge is required to run the machine. The operator simply loads the polishing fixture and presses a button to start one of four programmed cycles.

Download Machine Features and Benefits (.pdf)

Features:

  • Pneumatically-Controlled Polishing Pressure provides consistent polishing force regardless of ferrule length
  • Pivoting Overarm provides easy cleaning of fixtures between steps and quick change of fixtures
  • Cable Management System routes cables away from the polishing activity
  • Standard 5" Platen with 8" Option provides flexibility in fixture capacity and polishing film size
  • Drip Tray swivels in for quick and easy cleaning of fixtures between steps
  • Robust Design uses the highest-quality materials machined to nano tolerances
  • Quick-Change Fixtures support all industry standard connector types, both single and multiple fiber (Fixtures sold separately)

Fixtures:

Model

Description

PF-FC8-12

FC/APC  12Port Polishing Fixture

PF-FC8-18

FC/APC  18Port Polishing Fixture

PF-SC/FCU-12

FC/PC SC/PC  12Port Universal Polishing Fixture

PF-SC/FCU8-12

FC/APC SC/APC  12Port Universal Polishing Fixture

PF-FO-12

Ferrule 12Port Polishing Fixture

PF-FO8-12

APCFerrule 12Port Polishing Fixture

PF-FO-12C

Ferrule 12Port Polishing Fixture

PF-FO8-12C

APCFerrule 12Port Polishing Fixture

SF-FO-12R1

Setting fixture

PF-FO-24

Ferrule 24Port Polishing Fixture

SF-FO-24

Setting fixture

PF-LC-12

LC/PC 12Port Polishing Fixture

PF-LCF-12

LC/PC 12Port Polishing Fixture(FLC)

PF-LCAF-12

Adjustable LC/PC 12Port Polishing Fixture

PF-LCF8-12

LC/APC 12Port Polishing Fixture(FLC)

PF-LC8-12

LC/APC 12Port Polishing Fixture

PF-MT-10

MT 10Port Polishing Fixture

PF-MT8-10

MT8° 10Port Polishing Fixture

PF-MT8-12

MT8° 12Port Polishing Fixture

PF-MTRJ-10

MTRJ 10Port Polishing Fixture

PF-MTRJ8-10

MTRJ8°10Port Polishing Fixture

PF-MU-12

MU 10Port Polishing Fixture

PF-MU-24

MU 24Port Polishing Fixture

PF-MUF-24

MU 24Port Polishing Fixture(FLC)

PF-SC-18

SC/PC 18Port Polishing Fixture

PF-SC8-12

SC/APC 12Port Polishing Fixture

PF-SC8-18

SC/APC 18Port Polishing Fixture

PF-ST-12

SC/PC 12Port Polishing Fixture

PF-ST-18

SC/PC 18Port Polishing Fixture

?FLC:Ferrule Length Compensated
