| High Precision Fiber Cleavers |
 |
| CT-30, CT-10, CT-100,CT-11,CT-32 |
| Product Description£º |
High Precision Fiber Cleavers:
CT-30(single/multi fiber)?CT-10?CT-32?
CT-100(0-15deg.)?CT-11(0-9 deg.)
| PN |
Fiber count |
Cladding diameter |
Coating diameter |
Cleave length |
Blade life |
Angle cleaving |
|
| CT-30 |
Single fiber?Multi fiber(up to12fibers) |
125 µm |
250 to 900 µm |
6-20mm |
48,000 cleaves 1,000 x 3 height x 16 positions |
NA |
 |

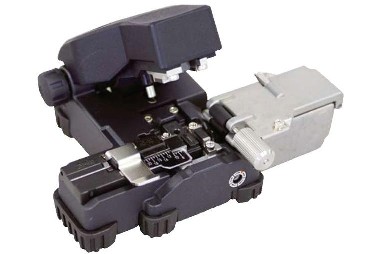

| CT-10 |
Single fiber |
125 µm |
250 to 900 µm |
6 to 20 mm (coating dia. = 250 µm) 8 to 20 mm (coating dia. > 250 µm) |
64,000 fibers (4,000 fibers x 16 positions) |
NA |
 |
| CT-32 |
Single fiber |
125 µm |
250 to 900 µm |
3-10mm |
48,000 cleaves 1,000 x 3 height x 16 positions |
NA |
 |

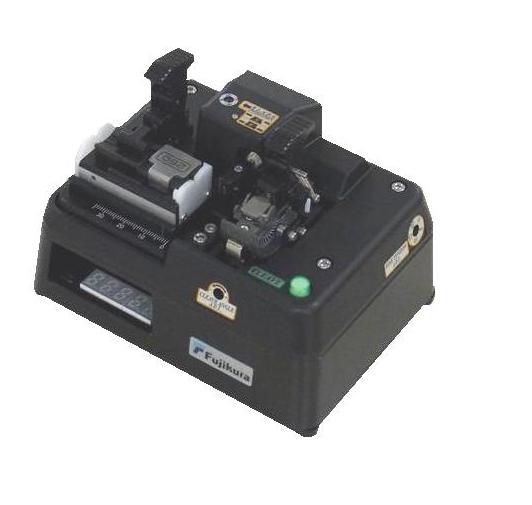

| CT-100 |
Single fiber?LDF fiber |
80 to 250µm |
160 to 2000µm |
3 to 40mm |
20000 fibers(cladding diameter 125µm) |
0-15°(cladding diameter 125µm) |
 |

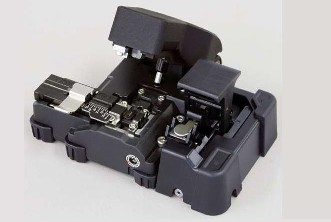

| CT-11 |
Single fiber |
125 µm |
250 to 900 µm |
6 to 20 mm (coating dia. = 250 µm)?8 to 20 mm (coating dia. > 250 µm) |
64,000 fibers (4,000 fibers x 16 positions) |
0-9°(single mode fiber) |
 | |
|
|
