BSR 公司在市场上已发售超过50 万只激光器产品，目前主要有以下三大类产品：
一． Laser Components 激光器 器件，其中又分成三种产品：
1.) VPSL( Virtual Point Source Laser) TOCan
VPSL 和其他公司的激光器相比，主要是激光器发射面上安装了BSR 专利的μLensTM ，使得光束质量大大的得到提高：
high power, low-divergence, circular, diffraction-limited beam. The μLensTM is mounted directly in front of the diode's emitting edge, capturing nearly 100% of the diode's power, circularizing the beam and correcting any aberrations, all in a single step. Because of these unique beam qualities, VPSLasers have demonstrated, for example, over 80% coupling efficiency in the visible range, into a single-mode fiber optic — up to twice that achieved by multi-macro-optics with standard laser diodes.
%20TOCan.jpg)
VPSL 有5.6mm 和 9mm 二种TO 封装，具体波长，功率如下：
Product Specifications
|
VPSL Series |
Former Part Number |
Wave Length/ Power |
TO Can Size |
|
VPSL-0635-003-X-5-B |
PS103-00 |
635nm/3mW |
5.6mm |
|
VPSL-0635-005-X-5-A |
PS111-00 |
635nm/5mW |
5.6mm |
|
VPSL-0635-005-X-9-B |
PS020-00 |
635nm/5mW |
9.0mm |
|
VPSL-0635-005-X-5-B |
No PS# |
635nm/5mW |
5.6mm |
|
VPSL-0635-010-X-5-B |
No PS# |
635nm/10mW |
5.6mm |
|
VPSL-0635-010-X-9-B |
PS024-00 |
635nm/10mW |
9.0mm |
|
VPSL-0635-010-A-9-B |
PS048-00 [60 Degree Diode] |
635nm/10mW |
9.0mm |
|
VPSL-0635-015-X-9-B |
PS028-00 |
635nm/15mW |
9.0mm |
|
VPSL-0639-035-X-5-B |
PS113-00 |
639nm/35mW |
5.6mm |
|
VPSL-0655-005-X-5-B |
No PS# |
655nm/5mW |
5.6mm |
|
VPSL-0655-007-x-5-A/B/E |
*New laser with lower operating current |
655nm/7mW |
5.6mm |
|
VPSL-0658-035-X-5-A |
PS104-00 |
658nm/35mW |
5.6mm |
|
VPSL-0658-050-X-5-G |
Higher Temp Rating No Photo Diode |
658nm/50mW |
5.6mm |
|
VPSL-0658-050-X-5-ABG |
New Diode Available with or without PD |
658nm/50mW |
5.6mm |
|
VPSL-0658-080-H-5-F |
New Diode No Photo Diode |
658nm/80mW |
5.6mm |
|
VPSL-0658-100-X-5-ABG |
New Diode Available both with orwithout Photodiode |
658nm/100mW |
5.6mm |
|
VPSL-0660-130-X-5-G |
New Diode PD not included |
658nm/130mW |
5.6mm |
|
VPSL-0670-005-X-5-B |
No PS# |
670nm/5mW |
5.6mm |
|
VPSL-0670-010-X-9-B |
PS021-00 |
670nm/10mW |
9.0mm |
|
VPSL-0670-010-X-5-ABE |
New Laser/ No PS# |
670nm/10mW |
5.6mm |
|
VPSL-0690-035-X-5-A |
PS107-00 |
690nm/35mW |
5.6mm |
|
VPSL-0785-025-X-5-B |
No PS# |
785nm/25mW |
5.6mm |
|
VPSL-0785-050-X-9-B |
PS026-00 |
785nm/50mW |
9.0mm |
|
VPSL-0785-070-X-5-A |
PS114-00 |
785nm/70mW |
5.6mm |
|
VPSL-0785-070-X-5-B |
No PS# |
785nm/70mW |
5.6mm |
|
VPSL-0808-100-X-9-B |
PS046-00 |
808nm/100mW |
9.0mm |
|
VPSL-0808-150-S-9-B |
No PS# |
808nm/150mW |
9.0mm |
|
VPSL-0808-150-X-5-B |
New Laser/No PS# |
808nm/150mW |
5.6mm |
|
VPSL-0808-200-X-5-B |
No PS# |
808nm/200mW |
5.6mm |
|
VPSL-0830-040-X-9-B |
PS047-00 |
830nm/40mW |
9.0mm |
|
VPSL-0830-040-X-9-A |
PS025-00 |
830nm/40mW |
9.0mm |
|
VPSL-0830-150-X-5-A |
No PS#/Case Negative |
830nm/150mW |
5.6mm |
|
VPSL-0830-150-X-9-B |
No PS# |
830nm/150mW |
9.0mm |
|
VPSL-0830-200-X-9-B |
No PS# |
830nm/200mW |
9.0mm |
|
VPSL-0850-050-X-9-B |
PS045-00 |
850nm/50mW |
9.0mm |
|
VPSL-0850-150-X-9-B |
PS031-00 |
850nm/150mW |
9.0mm | 2).FiberMax (带尾纤的激光器件 )
BSR把VPSL进一步做了光纤耦合，其主要波长，功率如下：
|
Wavelength |
Power |
Part Number |
|
532nm |
5mW |
FMXL532-005-XXXB |
|
635nm |
1.0mW |
FMXL635-001-XXXB |
|
635nm |
5mW |
FMXL635-005-XXXB |
|
635nm |
17.5mW |
zFMXL635-017-XXXB |
|
658nm |
17.5mW |
FMXL658-017-XXXA |
|
658nm |
25mW |
FMXL658-025-XXXG |
|
658nm |
60mW |
FMXL658-060-XXX-A-B-G |
|
660nm |
75mW |
FMXL660-075-XXX-G |
|
690nm |
17.5mW |
FMXL690-017-XXXA |
|
785nm |
40mW A/B pin out |
FMXL785-040-XXXA-B |
|
808nm |
75mW |
FMXL808-075-XX0B |
|
830nm |
100mW |
FMXL830-100-XXXB | 3).MiniLaser （带驱动电路的激光组件）
|
The MiniLaseCFTM Family of lasers from Blue Sky Research has been specifically designed to offer superior beam qualities in a compact package for OEM applications. The MiniLaseCFTM products combine Blue Sky Research’s VPS (virtual point source) lasers with high quality optics, solid packages and laser drive electronics. The circular,diffraction-limited gaussian beam from MiniLaseCFTM products, either well collimated or focused at the chosen distance, is much better than the beam from a regular diode laser module and easier to be integrated with other optics. The built-in automatic power stabilization (APC) function provides high stability and low noise at the same time. All devices include integrated on/off LED indicators to visually confirm module operation and simplify OEM field service operations.
|
Wavelength
(mm) |
Power
(mm) |
Beam Characteristics |
Package Size |
|
Profile
|
Size＆#8224;
(mm) |
Focus
Distance
（mm） |
Minimal
Spot
Size
@
Focus*
(1/e2,
mm) |
Divergence
Full Angle
(mrad) |
Diameter
(mm) |
Length
(mm) |
Drawing |
|
635 |
1, 5, 10,
30 |
Collimated
|
1.0
1.5
2.5 |
NA
NA
NA |
NA
NA
NA |
<1.2
<1.0
<0.8 |
9.5 |
20 |
A |
|
635 |
1, 5, 10,
30 |
Collimated
|
4.0 |
NA |
NA |
<0.5 |
11 |
30 |
B |
|
635 |
1, 5, 10,
30 |
Focused
|
1.0 |
25 to Inf |
0.025 |
NA |
9.5 |
20 |
A |
|
635 |
1, 5, 10,
30 |
Focused
|
4.0 |
180 to Inf |
0.040 |
NA |
11 |
30 |
B |
|
655 |
5 |
Collimated
|
1.0
1.5
2.5 |
NA
NA
NA |
NA
NA
NA |
<1.2
<1.0
<0.8 |
9.5 |
20 |
A |
|
655 |
5 |
Collimated
|
4.0 |
NA |
NA |
<0.5 |
11 |
30 |
B |
|
655
|
5 |
Focused
|
1.0 |
2.5 to inf |
0.025 |
NA |
9.5 |
20 |
A |
|
655
|
5
|
Focused
|
4.0 |
180 to Inf |
0.040 |
NA |
11 |
30 |
B |
|
670
|
5
|
Collimated
|
1.0
|
NA
|
NA
|
<1.2
|
9.5
|
20
|
A
|
二． Fiber Coupled Lasers
这是BSR 带TEC,和驱动电路，自动功率控制电路的高性能光纤输出的激光模块。The FiberTec IITM product family incorporates highly integrated sophisticated electronics for laser drive and protection, modulation and feedback functions. This ultra compact stand alone assembly is RoHs compliant and can be ordered with a variety of collimation optics which allows easy integration into your system.
其主要常用的波长是405nm, 488nm, 532nm and 635nm，主要稳定性如下：
|
Diffraction Limited
Performance
Solid State Reliability
Optical Noise <0.5% (RMS) |
Beam Pointing Stability
<10urad/C
Power Stability < 0.5% (2 hrs)

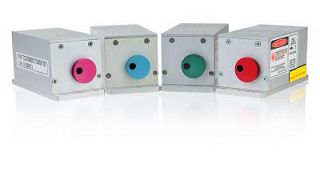

Micro-optics | 三． Laser Diode Modules
这是BSR 最新一代的高性能自由空间输出光的激光器模块，同样带TEC,和驱动电路，自动功率控制电路，更带有输出功率可调，过压、反压保护和抗静电保护功能。The FiberTec IITM product family incorporates highly integrated sophisticated electronics for laser drive and protection,modulation and feedback functions. This ultra compact stand alone assembly is RoHs compliant and can be ordered with a variety of collimation optics which allows easy integration into your system. The laser is temperature stabilized with a thermoelectric cooler (TEC) and the integrated controller includes; laser driver, output power stabilization, adjustable power level control,
modulation capability, reverse and over voltage protection, and ESD-fast transient suppression circuitry. |
其主要常用的波长是405nm, 488nm, 532nm and 635nm，主要稳定性如下：
|
Diffraction Limited Performance
Solid State Reliability
Optical Noise <0.5% (RMS) |
Beam Pointing Stability
<10urad/C
Power Stability < 0.5% (2 hrs)
Micro-optics | |
|
|
|
