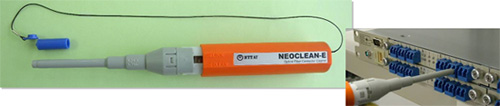

NEOCLEAN-E is an innovative optical connector cleaner with a replaceable cleaning cartridge. Residue on the end face of optical connectors can be removed by a simple push that provides a consistent and dependable cleaning every time.

Features

• While the cartridge effectively cleans the end face of optical fiber connector ferrule in an adaptor, using the accessory attachment on the end of the cartridge enables you to also clean the end face of ferrule in an optical plug assembly.
• Very easy cleaning operation and delivers consistent high quality cleaning performance
• An alcohol-free, dry thread solution
• Cleaning cartridge is replaceable and cost effective
• Has anti-static properties that prevent dust from re-adhering to the ferrule end face
• Each replaceable cartridge provides 750+ ferrule cleaning cycles

Specifications

Product name	NEOCLEAN-E
Applicable Optical Connectors	MU*, LC, LC/APC		SC, FC, SC/APC, FC/APC
Part No.	Assembled Unit	Cleaning Cartridge	Assembled Unit	Cleaning Cartridge
	ATC-NE-E1	ATC-NE-ES1	ATC-NE-E2	ATC-NE-ES2
Length (mm)	240	200	230	190

* Cannot be used for cleaning optical fiber connector ferrule end face in an multiport MU adaptor.

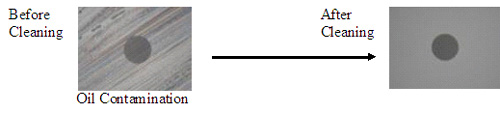

Ferrule end-face before/after use of NEOCLEAN-E

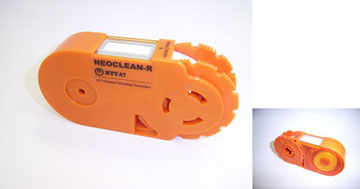

NEOCLEAN-R is a simplified and disposable (non-replaceable) cassette type cleaner for end-faces of connector plugs.

Features

• Cassette case made with anti-static resin
• An alcohol-free dry cloth solution
• Palm-sized and lightweight
• Efficient and easy to use
• Delivers consistently high quality cleaning performance
• Specially washed, high-densely woven, micro-fiber cleaning tape
• Each cassette provides approx. 200 ferrule cleaning cycles

Specifications

Product name	NEOCLEAN-R
Part No.	ATC-NE-C
Connectors cleande	SC, FC, ST, MU, LC, MPO, MT, MT-RJ (w/o pins)
Dimension	L 115mmm × W 25mm × H 55mm
Packaging	Each cassette packaged separately

Ferrule end-face before/after use of NEOCLEAN-R

Oil contanination
Before Cleaning	After Cleaning

Stick type Cleaner for in-adapter ferrule/sleeve

Features / Specifications

• Stick made with anti-static resin
• Specially washed high-densely woven micro-fiber cleaning cloth for cleaning part
• φ2.5mm/φ1.25mm ferrule/sleeve inside cleaning tool
• Length of the stick is adjustable
  (Min. 45mm ~ Max. 152mm)

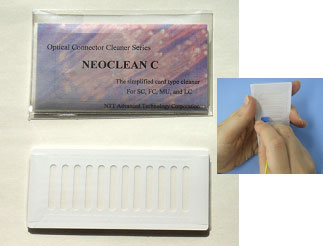

Disposable type Card Cleaner for end-faces of the connector plugs

Features / Specifications

• Specially washed high-densely woven micro-fiber cleaning cloth for cleaning part
• Dimension
  L 105mm × W 44mm × T 2mm
